Professionally made program-controlled device with motor active braking, designed for airsoft electric guns (AEG).
It adds new ways of shooting, controls rate of fire, pre-cocking, active braking and low battery indication.

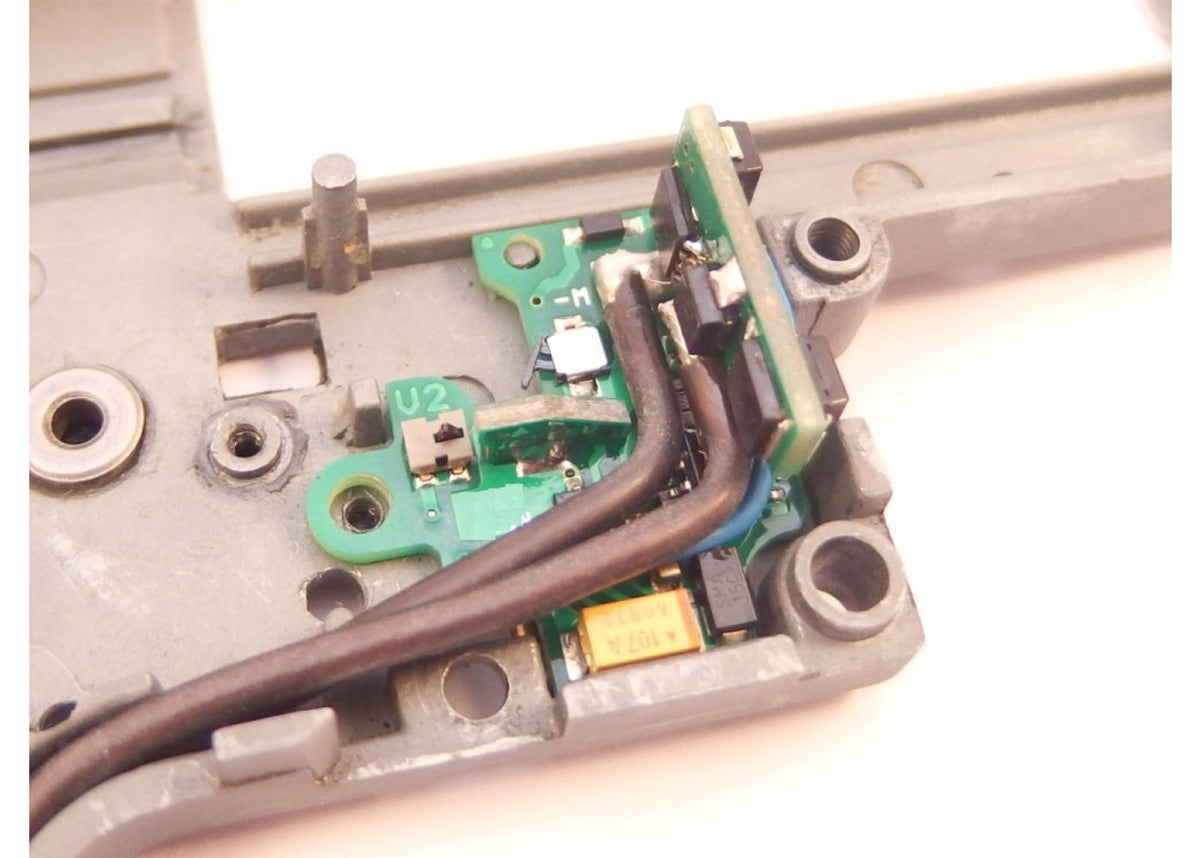

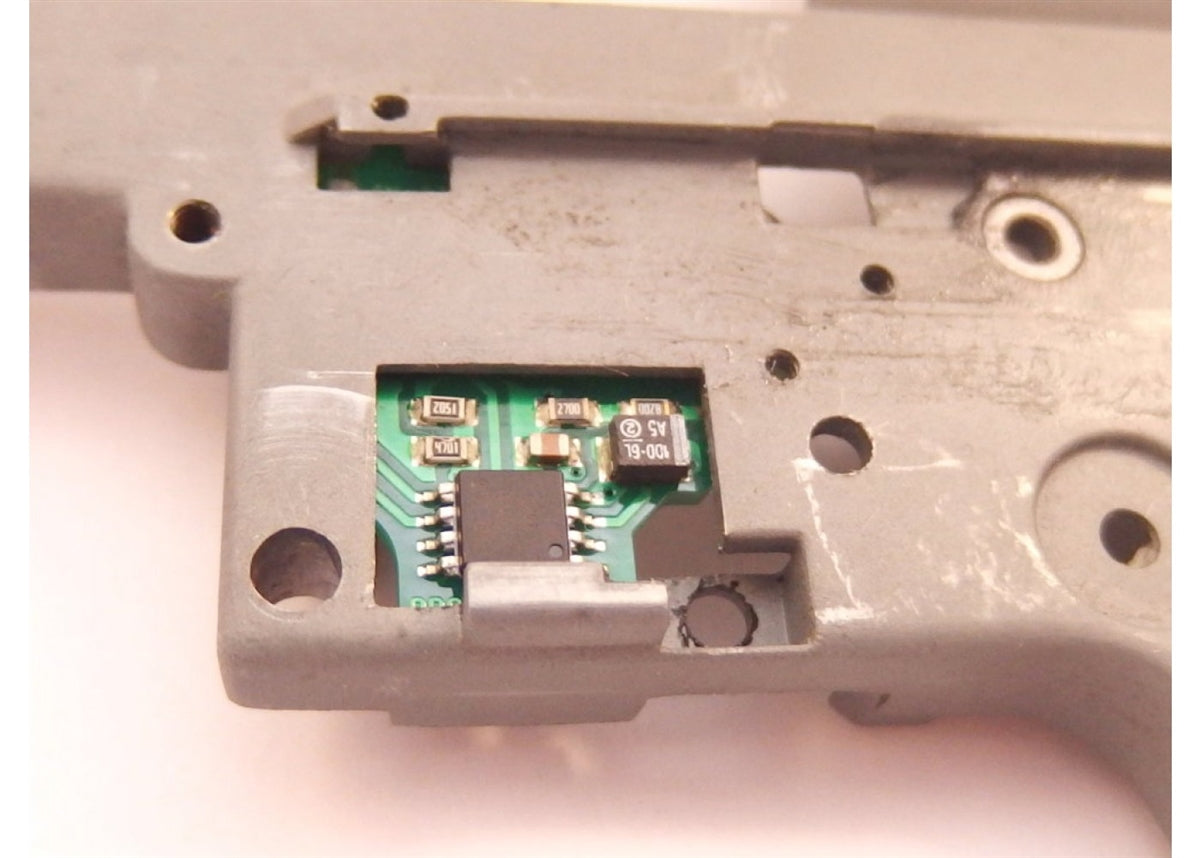

Device is fully integrated inside the gearbox v.3 instead of the original trigger contacts, compatible with Tokyo Marui standard.
It can be used into guns type: AK, G36, SIG, FN FAL, MP5k,..
Main parameters:
- Easy installation inside the gearbox version 3
- Presoldered wires allows faster and easier installation into the gun, it is long enough for all kind of weapons
- It preserves trigger mechanical lock in SAFE position
- Six new shooting modes, one of them is unique compared processor units located outside gearbox
- Adjustable burst (from factory are 3 shots, it can be changed in the range 1 - 10 shots)
- Smooth change rate of fire using PWM motor control
- Pre-cocking function for instant shot in SEMI fire
- Quick first shot at reduced rate of fire
- Mosfet with motor active braking
- Adjustable strength of active braking (can be also disabled)
- Low battery indication 2S and 3S Li-pol, 3S li-fe and 3S li-on
- Coated with lacquer, it protects device against water
- Monitoring current, voltage and temperature of Processor unit components
- Trigger gun is used for programming this device, motor vibrates as a feedback for user
- Programmed settings are stored in processor unit memory, so it doesn't loose changes after disconnection the battery
Fire modes:
- Safe - Semi – Auto (unchanged gun function)
- Safe - Semi - Burst/Auto
- Safe - Semi - Semi
- Safe - Semi - Burst
- Safe - Semi - Semi (delay between shots, motor vibration when it is ready to fire)
- Safe - Burst - Burst/Auto
- Safe - Semi/Burst - Burst/Auto (unique fire mode only in this drop-in processor unit)
Specifications:
- Only for electric airsoft guns with gearbox version 2 with switch designed according the Tokyo Marui company.
- Versions with universal wiring, which are long enough for all kind of weapons. Simply cut wires to the required length and attach connectors

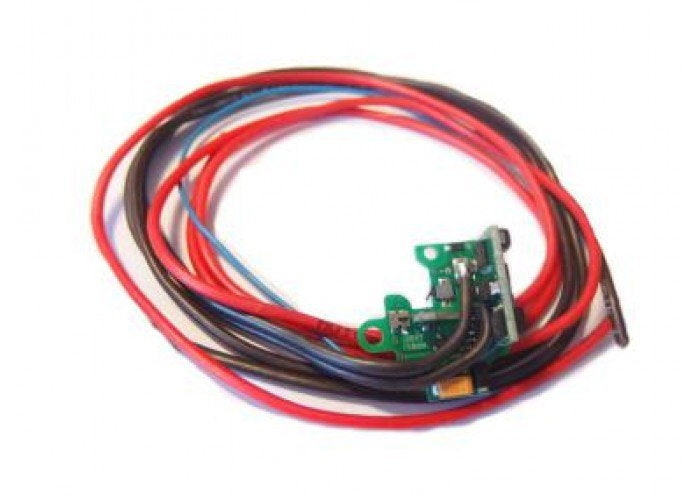

- On the devices are presoldered high quality 2 black wires 1,5 qmm (AWG16) with silicone insulation, length 400 mm to the motor and 600 mm to the battery. The blue wire 0.25 qmm (AWG24) with a length 300 mm is used for connection anywhere on the red cable
- In package is included 1000 mm red wire 1,5qmm (AWG16) with silicone insulation
- Designed for spring M180 and ROF 25bb/s.
- For right function is necessary to have a functional gearbox cut off lever, selector plate, reverse latch, trigger and trigger block, as it has the standard gearbox
- Specified for common batteries up to 14V (Ni-xx 8.4 - 12V, lipol 7.4 - 11.1V)
- Current device consumption only 4.5 mA in idle state
- Device increases gun rate of fire and battery holds longer, than with basic wiring
- With active braking in semi fire mode piston isn't partially stretched, spring is fully released, parts in mechabox aren't under strain and nozzle locks hop-up chamber in greater part (depends on ROF)
- In weapons with very high rate of fire (ROF) active break solves multiple shots in semi mode
- The braking effect is the most powerful with high torque motor
- In auto fire mode piston stops in random position due the mechabox design. But it stops much faster with active brake
- Manual Included
WARNING: Professional Installation Required. We can't guarantee 100% compatibility with all gearboxes due to manufacturing inconsistencies on different AEG brands.
